Conference Poster

• Only requires one main power cable to be plugged in, which is extremely user-friendly. This simplifies the setup process and eliminates the need for complex wiring or technical expertise. End users can quickly and easily get the display up and running without the hassle of dealing with multiple cables or complicated connections.

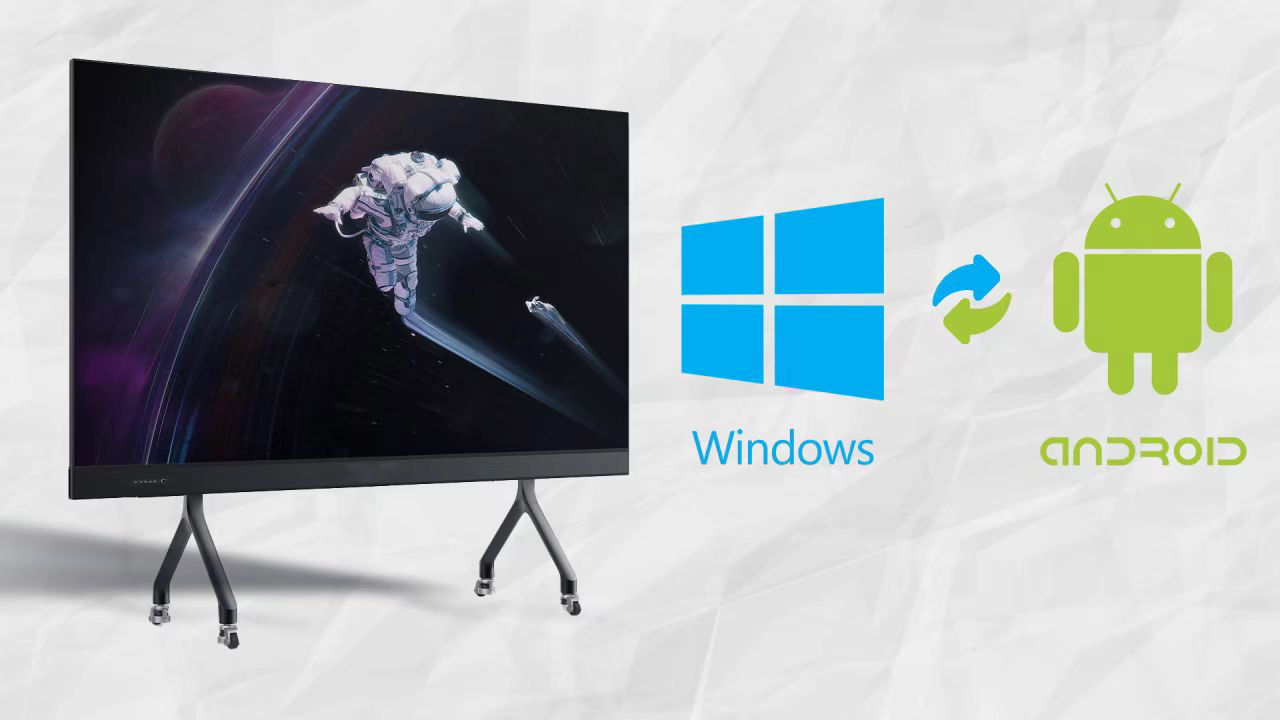

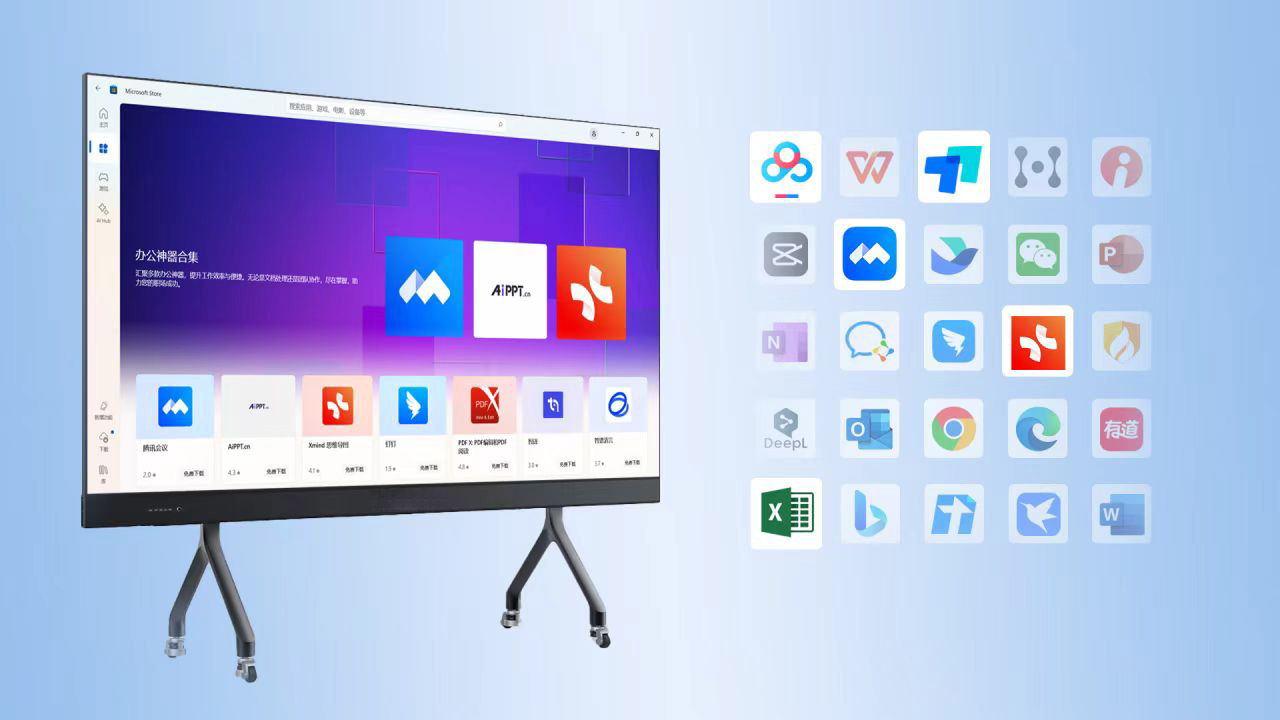

• Integrated with professional meeting software, enhancing the functionality for office and meeting environments.

• Supports connection with microphone, camera, and other equipment, enabling seamless communication and collaboration. This makes it ideal for video conferences, presentations, and team meetings. Users can easily integrate their existing audio and video equipment to create a comprehensive meeting solution.

• The screen can be placed in a flight case, allowing for easy transportation and storage. This is particularly useful for rental applications where the display needs to be moved between different locations.

• With a quick setup time of just 2 minutes, it is efficient and saves time for event organizers and rental companies.

• Allows for cascade connection, enabling users to create larger and wider displays by connecting multiple units together. This provides flexibility in configuring the display size according to the specific needs of different events or venues.

• Whether for a large conference hall, exhibition, or outdoor event, the cascade connection option allows for a more immersive and impactful visual experience.

• Offers a 135'' display with 2K and above resolution, providing high-quality visuals for a wide range of applications.

• The screen thickness of 27mm is slim and sleek, making it unobtrusive and easy to install in different environments.

• Users can choose from different display technologies such as SMD/GOB/HOB/COB, depending on their specific requirements and preferences.

• With 16-bit color depth, a refresh rate of 3840Hz, and a contrast ratio of 7000:1, the display offers excellent image quality, smooth motion, and vivid colors. This ensures that the visuals are sharp, clear, and engaging, enhancing the overall viewing experience.

• The All-in-One series is indeed a remarkable innovation in the field of LED screens. By integrating multiple functions such as video communication, presentation display, collaborative whiteboard, and wireless projection, it offers a comprehensive solution for various applications.




• Advantages of the All-in-One Series




• Convenience: With multiple functions in one device, it saves space and reduces the need for multiple separate devices. This makes it easier to set up and use in different environments.

• Efficiency: The integrated functions allow for seamless switching between different tasks, enhancing productivity and workflow. For example, during a presentation, one can easily switch from video communication to collaborative whiteboarding without the hassle of switching between different devices.

• Enhanced Collaboration: The collaborative whiteboard feature enables multiple users to work together simultaneously, sharing ideas and making annotations in real time. This is particularly useful in team meetings, brainstorming sessions, and educational settings.

• Wireless Projection: The wireless projection function allows users to easily share content from their devices without the need for cables. This makes it convenient for presentations and collaborative work.




• Indoor Fixed LED Wall as the Best Choice for All-In-One LED Board




• Close Viewing: Due to the demand for close viewing, indoor fixed LED walls offer high resolution and excellent image quality. This makes it possible to clearly see details and text, even from a short distance.

• Durability: LED walls are known for their durability and long lifespan. They can withstand continuous use and are less prone to damage compared to other display technologies.

• Customization: Indoor fixed LED walls can be customized to fit different sizes and shapes, making them suitable for various indoor spaces. They can also be designed to match the aesthetic of the surrounding environment.

• Brightness and Contrast: LED walls offer high brightness and contrast, ensuring clear visibility even in well-lit environments. This is important for indoor applications where ambient light can affect the visibility of the display.




• In conclusion, the All-in-One series with its integrated functions is a game-changer in the LED screen market. And indoor fixed LED walls, due to their close viewing capabilities and other advantages, are an excellent choice for implementing the All-In-One LED board. Whether in corporate meetings, educational institutions, or other settings, these solutions offer a powerful combination of functionality and visual impact.

•

•

Model	YWD Poster-0.9	YWD Poster-1.2	YWD Poster-1.5
Pixel Pitch(mm)	0.9375	1.25	1.56
Pixel Matrix Per Sq.m	1,137,778	640,000	409,600
Pixel Configuration	COB/SMD/GOB	COB/SMD/GOB	COB/SMD/GOB
Brightness (cd/㎡)	500	600	600
Scan	1/60	1/45	1/48
Module Dimension (W*H)	150*168.75mm / 0.49*0.55ft
Cabinet Dimension (W*H*D)	600*337.5*27mm / 1.97*1.11*0.09ft
YWD Poster Dimension (W*H)	135'' | 3,000*1,687.5mm / 9.84*5.54ft
YWD Poster Resolution	3,200*1,800
Outer Frame Size (W*H*D)	1804*1948*770mm / 5.92*6.39*2.53ft (Fold down)
Outer Frame Size (W*H*D)	3010*2598*770mm / 9.88*8.52*2.53ft (Unfold and lift)
Power Consumption (Max / Avg)	Max 780W/㎡ / Avg 390W/㎡
Cabinet Material	Die Casting Aluminum
Cabinet Weight	4.6KG
Contrast Ratio	7000:01:00
Service Access	Front
Refresh Rate (HZ)	≥3840
Grey Scale (bit)	16
Viewing Angle (H/V)	170°/170°
IP Rate	Front IP65 / Rear IP43
Operation Temperature	-20℃ ~ +60℃
Input Voltage (AC)	110V / 220V

* Specifications and photos are subject to change without prior notice.

Size Can  Customize
